Product Detail

Details:

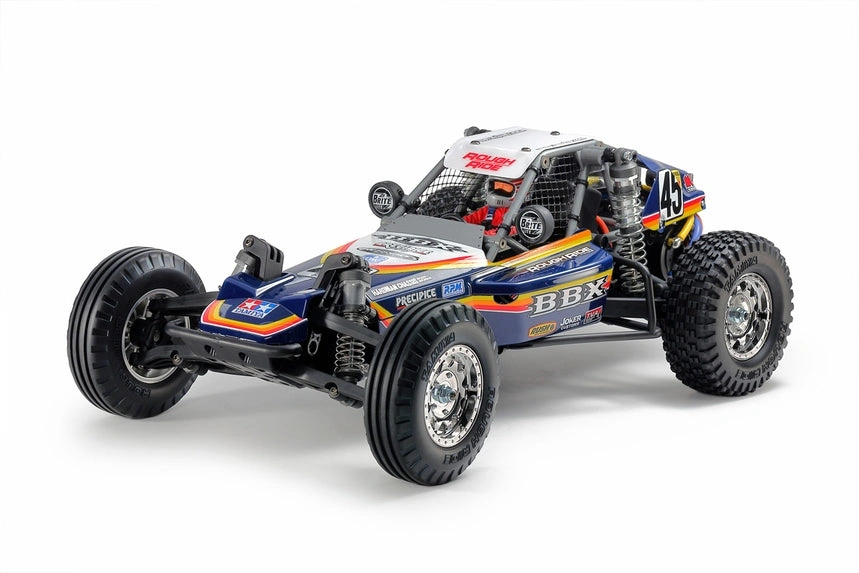

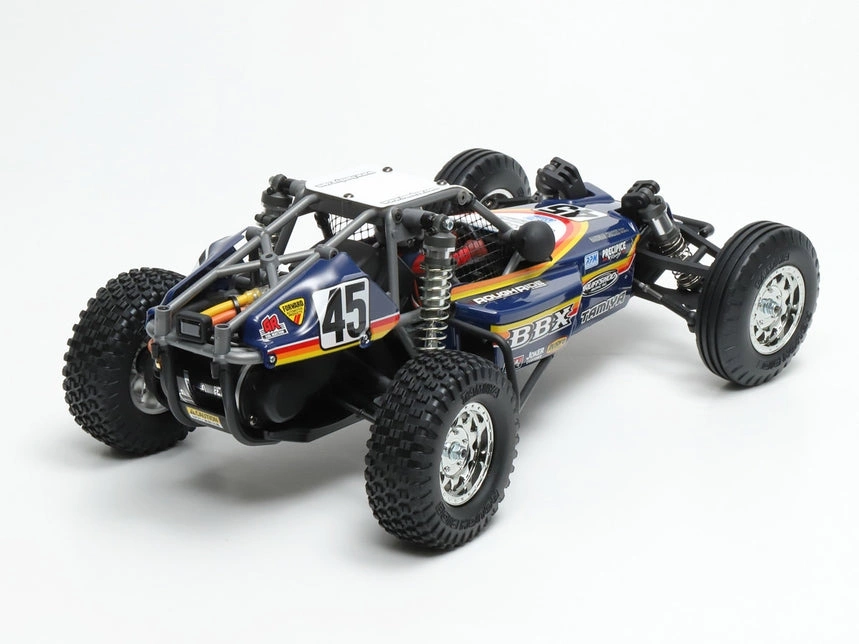

Tamiya’s designers have taken inspiration from its back catalog of iconic 2WD off-road buggies to bring fans of radio control the ALL-NEW BBX! This 1/10 R/C 2WD off-road buggy model features a combination of classic design and modern performance. Its brand-new chassis, reminiscent of 1980’s sand rail dune buggies, is a hybrid monocoque-roll cage and employs rear trailing arm suspension inspired by full-size UTV’s. The new body is designed by famed Japanese artist Atsushi Arino and utilizes a classic 1980’s inspired livery with retro wheels and tires to match!

Key Features:

• 1/10 R/C assembly kit. Length: 414mm, height: 136mm, width: 233mm. Wheelbase: 283mm.
• The classically designed 0.7mm thick polycarbonate body is split into three sections to recreate the tapered lower shape of the actual dune buggy.
• NEW: Newly designed 2WD chassis is based on the one-piece monocoque frame and roll cage to allow use of realistic bodies.

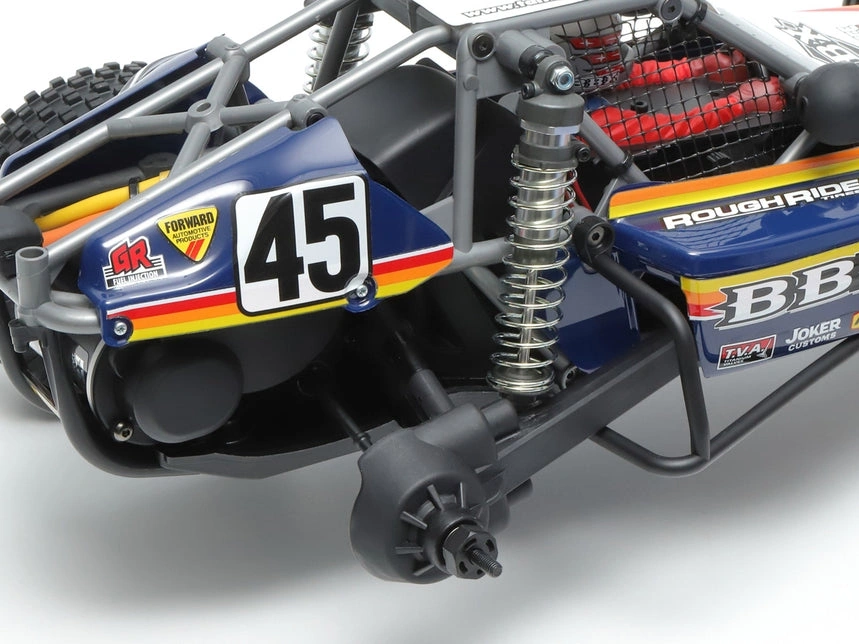

• The BB-01 chassis employs new front double wishbone suspension with A-shaped arms and rear trailing arm suspension with long trailing arms which are inspired by UTVs and give impressive performance.
• The 2WD chassis with rear motor features rear-position, inspired by the same layout of the actual vehicles of the era and allows great rear traction.
• The four-wheel double wishbone suspension system uses CVA oil front/rear aluminum aeration dampers for impressive performance and classic look.
• Transmission uses the TA06 rear ball differential for consistent traction and may be outfitted with the separately sold TA-06 oil-filled gear differential which allows the use of many existing Grade-Up parts.
• Features full ball bearings and universal drive shafts.
• Rear roll cage can be removed by detaching screws, which ensures ease of maintenance around motor.

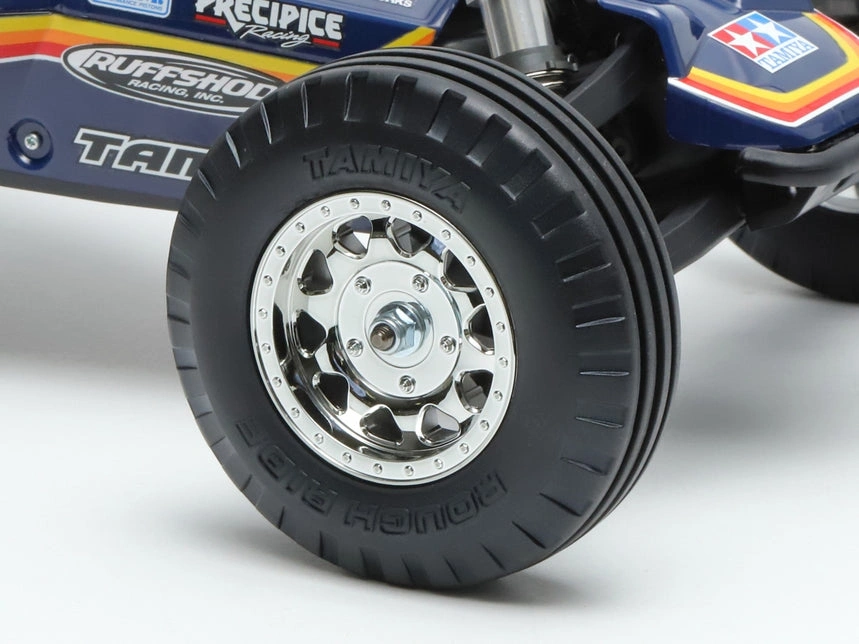

• NEW: New metal-plated bead lock type wheels are paired with NEW large-diameter tires.
• Includes driver figure and light cases for extra realism, and 5th spare tire mount adapter. (Spare tire may be purchased separately for added realism)

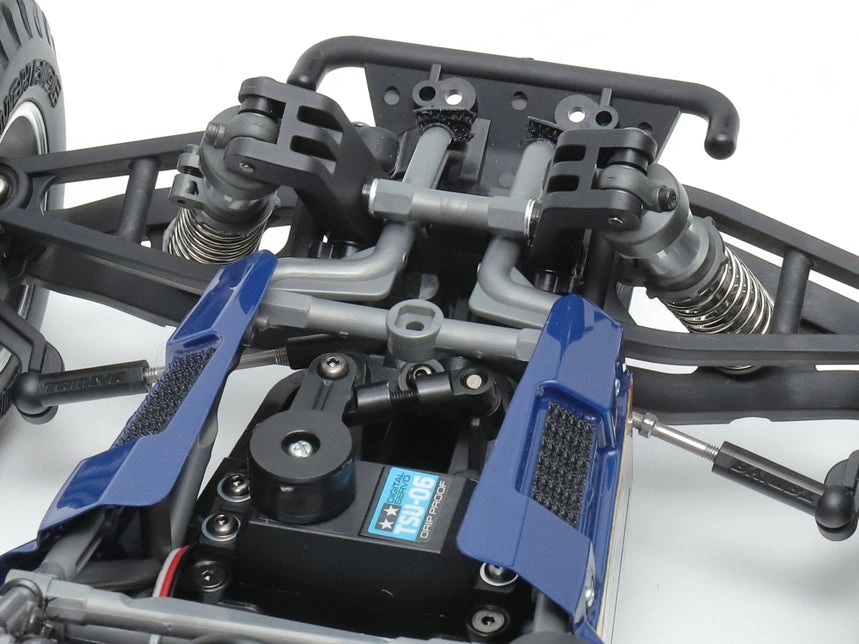

• Requires 2-channel radio, LOW-PROFILE steering servo (Example Dimension: 40.5 mm x 20 mm x 25.4 mm
1.59 in x 0.79 in x 1.0 in, 540) motor, ESC, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.

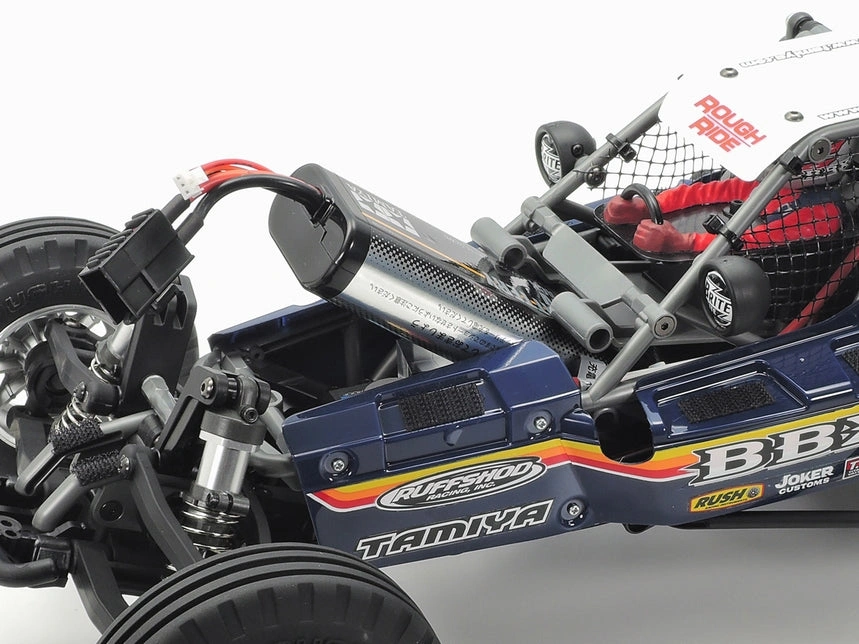

• NOTE: Battery compartment accommodates a square shaped LiPo 2S battery.
